Manually Installing Oracle TEXT in Oracle 12c R2 [Container] Database

Purpose: Manually Installing Oracle TEXT in Oracle 12c [Container] Database

Environment:

Database Software: Oracle 12c Release 2, currently it has a $ROOT CDB and $SEED PDB.

Operating System: Windows Server 2012 R2 Standard - 64 Bit

Oracle TEXT comes as an out-of-the-box component when you install and create Oracle 12c database using OUI / DBCA tools, but sometimes if you install and create the database manually like I did, you may have to manually install Oracle TEXT like explained here.

Step # 1: Checking the components present and the database size prior to install:-

SQL>  select comp_id, control, schema, version, status, comp_name from dba_registry order by 1;

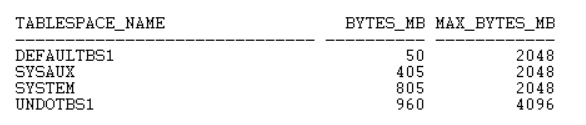

SQL>  SELECT TABLESPACE_NAME,BYTES/1024/1024 "BYTES_MB",MAXBYTES/1024/1024 "MAX_BYTES_MB" FROM DBA_DATA_FILES order by TABLESPACE_NAME;

SQL>  alter session set container = PDB$SEED;

SQL>  SELECT TABLESPACE_NAME,BYTES/1024/1024 "BYTES_MB",MAXBYTES/1024/1024 "MAX_BYTES_MB" FROM DBA_DATA_FILES order by TABLESPACE_NAME;

Step # 2:  Open a windows command prompt, set the environment variables (Make sure Oracle Home and Perl path is present).

> set ORACLE_SID=BABCDB

> set ORACLE_HOME=C:\Oracle12cR2_64Bit_DB\product

> set Path=C:\Oracle12cR2_64Bit_DB\product\bin;C:\Oracle12cR2_64Bit_DB\product\perl\bin;C:\Program Files (x86)\Common Files\Oracle\Java\javapath; C:\WINDOWS\system32;C:\WINDOWS;C:\WINDOWS\System32\...

> cd C:\Oracle12cR2_64Bit_DB\product\rdbms\admin

Step # 3:  My environment has a $ROOT CDB and $SEED PDB, I will be connecting to the $ROOT to install it.

perl catcon.pl -p 2 -u SYS/xxxxxxxxxx -l C:\temp\spatial -b catctx_install_babu -a 1 F:\Oracle12cR2_64Bit_DB\product\ctx\admin\catctx.sql 1babu 1SYSAUX 1TEMPTBS1 1NOLOCK;

catcon: ALL catcon-related output will be written to [C:\temp\spatial/catctx_install_babu_catcon_4620.lst]

catcon: See [C:\temp\spatial/catctx_install_babu*.log] files for output generated by scripts

catcon: See [C:\temp\spatial/catctx_install_babu_*.lst] files for spool files, if any

catcon.pl: completed successfully

Step # 4:  Verify the components:-

sqlplus SYS/xxxxxxxx@DEVCDB AS SYSDBA

SQL> SELECT TABLESPACE_NAME,BYTES/1024/1024 "BYTES_MB",MAXBYTES/1024/1024 "MAX_BYTES_MB" FROM DBA_DATA_FILES order by TABLESPACE_NAME;

SQL> select comp_id, control, schema, version, status, comp_name from dba_registry order by 1;

SQL> ALTER SESSION SET CONTAINER=PDB$SEED;

SQL> SELECT TABLESPACE_NAME,BYTES/1024/1024 "BYTES_MB",MAXBYTES/1024/1024 "MAX_BYTES_MB" FROM DBA_DATA_FILES order by TABLESPACE_NAME;

Step # 5:  Configure Language-specific default preferences (mine is U.S. English), connect as CTXSYS user and run below script:-

connect CTXSYS/xxxxx@devcdb

@F:\Oracle12cR2_64Bit_DB\product\ctx\admin\defaults\drdefus.sql

After successful install,  lock the CTXSYS account and expire its password.

conn SYS/xxxxxxxxxx@DEVCDB AS SYSDBA

Check for invalid objects in the database. If present, run utlrp.sql or recompile invalid objects.

col OBJECT_NAME for a30

col OBJECT_TYPE for a30

col OWNER for a20

SQL> select owner,object_name,object_type from dba_objects where status <> 'VALID' order by 1,2,3;

no rows selected

Dump contents of Oracle INIT Parameter File

Purpose: Dump the content of init parameter file that was used to start the database or create a copy of parameters and its values that was used to start the database

Environment: Oracle 12cR1 DB, on Windows, using a basic initXXXX.ora at its default location [$ORACLE_HOME\database]

SET FEEDBACK OFF

SET LINES 190

SET PAGES 1000

COL NAME FOR A160

COL INIT FOR A190

SPOOL C:\TMP\INIT_copy.TXT

select distinct INIT from

(SELECT NAME||' = '''||VALUE||'''' INIT FROM v$system_parameter where ISDEFAULT='FALSE' and TYPE = 2

UNION ALL

SELECT NAME||' = '||VALUE INIT FROM v$system_parameter where ISDEFAULT='FALSE' and TYPE <> 2)

order by 1;

SPOOL OFF
